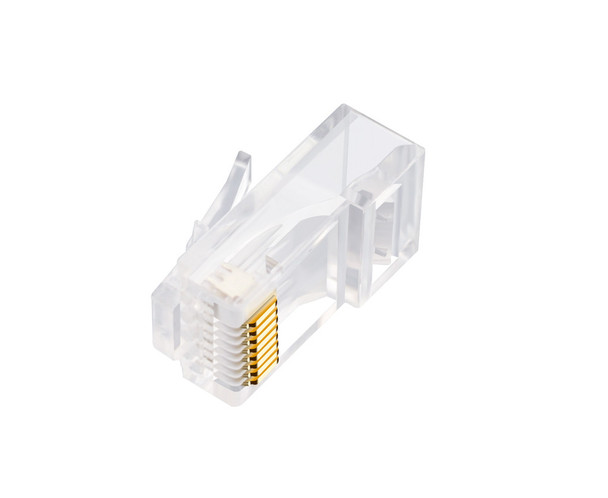

CAT6 Modular Connector for solid conductor ( 2 Piece ) 1000Pack

Part No. CTG-RJ45-29-100

Cat.6 8P8C UTP RJ45 Modular Plug with 3 Prong

Performance Category

Cat.6

Description

8P8C 2 Layers ( 2 Up and 6 Down )

Wire Insert Diameter

1.0mm

Maximum Cable O.D. Size

6.2mm

Maximum conductor W/insulation O.D. Size

1.0mm

Rated Current

125V,AC. 1.5A @25℃

Conductor type

3 Prongs for Solid /Stranded Cables

Insulation Resistance

500MΩ, Min. 100V DC /Min.

Insertion Force & Withdrawal Force

30N Max.

Durability

750 cycles min.

Packaging Features

100 or 1000pcs/bag

Plug Housing Material

UL 94V2 rated clear Polycarbonate (PC)

Contact Blades Material

Gold Plated

Operation Temperature

 - 40℃ ~ 85℃

Storage temperature

 - 40℃ ~ 70℃

Compliance

UL 94V-2, ROHS and Reach
