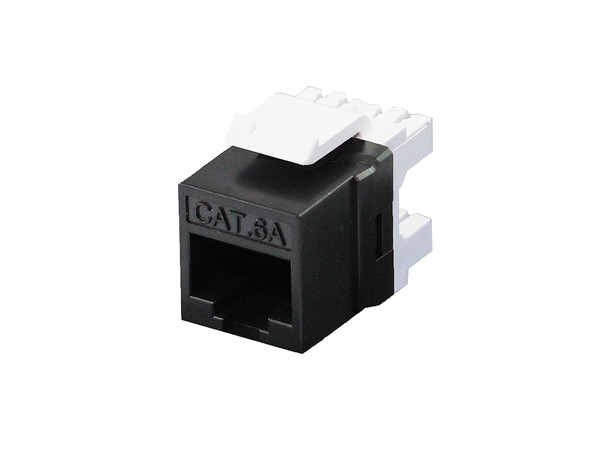

CAT6A UTP Keystone Jack

Introduction

The CAT6A UTP Keystone Jack is a high-performance, industry-standard termination module designed to support 10-Gigabit Ethernet and advanced network applications. Engineered for reliability and ease of installation, this keystone jack provides exceptional signal integrity with its tool-less or punch-down termination options (depending on model). Ideal for patch panels, wall plates, and surface boxes, it ensures stable, high-speed data transmission in data centres, commercial buildings, and structured cabling systems requiring CAT6A performance.

Specifications

• Category: CAT6A (Category 6A)
  • Type: UTP (Unshielded Twisted Pair)
  • Performance Rating: 10GBASE-T up to 100 metres
  • Frequency Bandwidth: Up to 500 MHz
  • Compliance:
  – ANSI/TIA-568.2-D
  – ISO/IEC 11801 Class EA
  • Connector Type: RJ45, 8-position / 8-contact (8P8C)
  • Termination Style:
  – Punch-down IDC (110 or dual-IDC depending on model)
  – Colour-coded T568A and T568B wiring schemes
  • Housing Material: High-impact, flame-retardant plastic
  • Contact Material: Phosphor bronze with 50µ” gold-plated contacts
  • Cable Compatibility:
  – 22–24 AWG solid copper cables
  – Compatible with CAT6A UTP cable
  • Rear Cable Entry: Tool-assisted strain relief or clip-on cap
  • Dimensions: Standard keystone footprint (compatible with most keystone panels and wall plates)
  • Operating Temperature: –10°C to +60°C
  • Applications:
  – 10G Ethernet
  – PoE, PoE+, PoE++ compliant
  – High-bandwidth data, VoIP, and HD video streaming
  – Structured cabling in enterprise and residential networks
